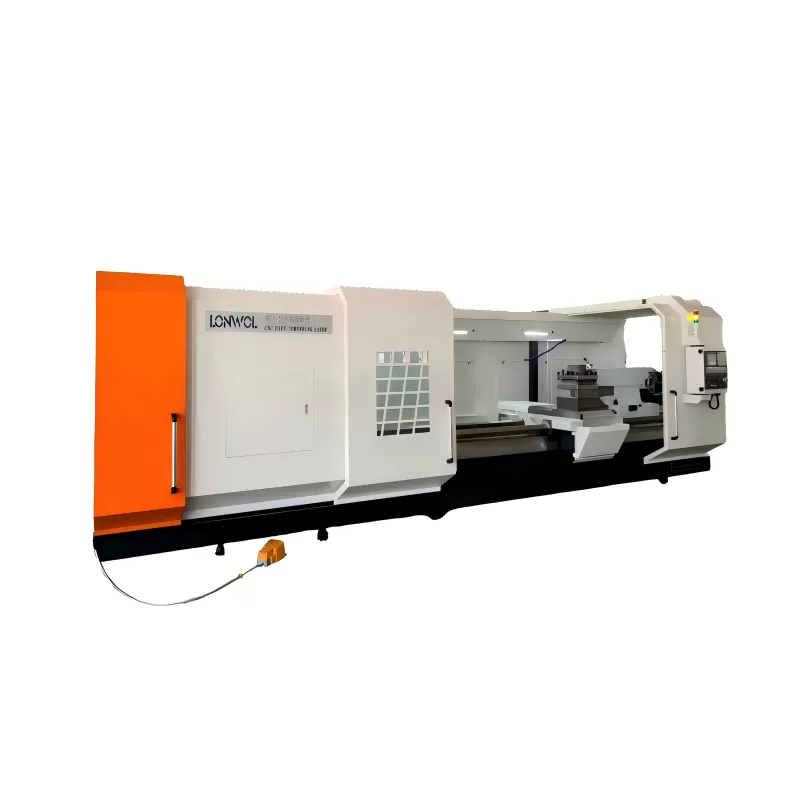

QLK1328 CNC Pipe Thread Lathe
1.Broad Processing Range
Max swing (Φ1000mm over bed) & cross-slide swing (Φ650mm) handle oversized workpieces;
Adjustable center distance (1500–3000mm) + customizable bed length fit long-pipe production needs.
2.High-Efficiency Threading

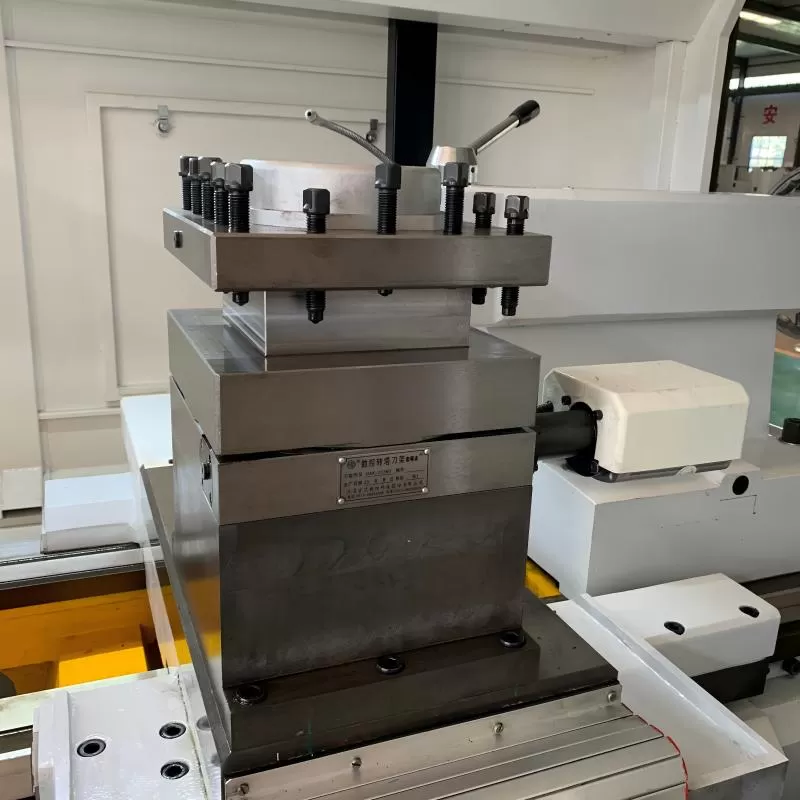

4-station NC turret enables fast tool changes, cutting idle time;
Spindle speed (20–380r/min) adapts to threading of various materials (steel, alloy, etc.).
3.Rigid & Stable Structure
4T load capacity + Φ280mm spindle diameter ensure stability during heavy cutting;

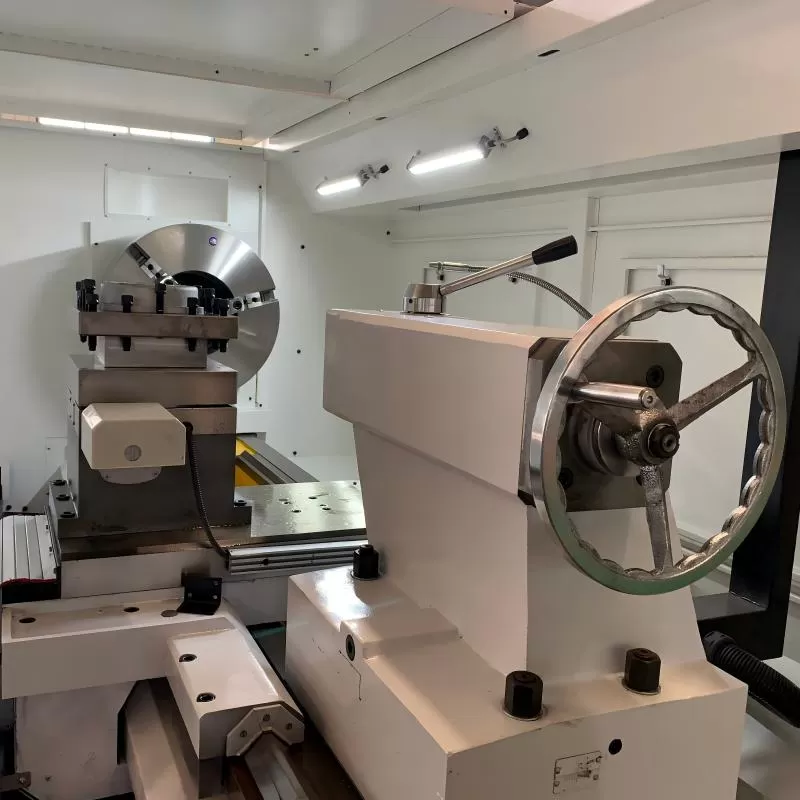

MT6 tailstock (Φ120mm quill) provides strong support for long workpieces, reducing vibration.
4.Cost-Saving Operation
15kW main motor balances power and energy efficiency;
Manual spindle speed stages (2stages) simplify operation & maintenance, lowering long-term costs.
5.Tailored for Your Needs
Customizable bed diameter/length matches your specific production line requirements.
- Overview
- Recommended Products

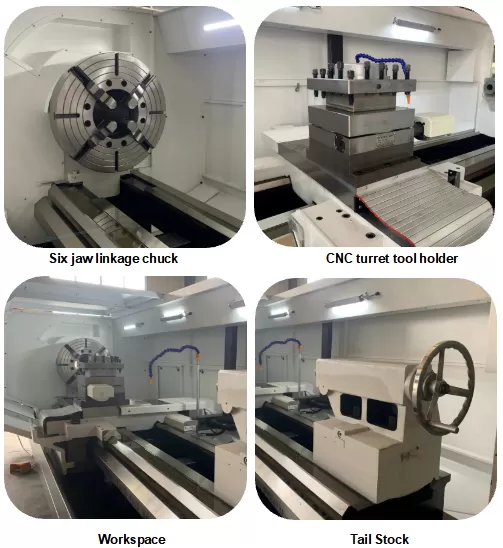

Key Components
Optional configuration
Optional Fanuc, Siemens, Guangsu and Kaindi numerical control system; Optional hydraulic chuck, horizontal cutter tower or power cutter tower, hydraulic tail seat, fully enclosed protective cover, rear support, measuring size.
Standard Configuration
Double three-jaw chuck, four-station electric tool holder, manual tail seat, automatic centralized lubrication system, cooling system, semi-closed protective cover.
Product Specifications
QLK13 CNC lathe main specifications/technical parameters. | |||
SPECIFICATIONGS | UNIT | QLK1328 | |
Processing Range | Swing over bed | mm | Φ1000 |
Swing over cross slide | mm | Φ650 | |
Distance between centers | mm | 1500–3000 | |
Pipe threading range | mm | Φ130–275 | |
Width of bed way | mm | 650 | |
Max. load capacity | T | 4 | |
Spindle | Spindle bore | mm | Φ280 |
Spindle speed | r/min | 20–380 | |
Spindle speed steps | — | Manual 2steps | |
chuck | mm | Φ800 4-jaw manual | |
Knife Holder | Turret/tool post | — | NC turret 4position |
Tool shank size | mm | 32 | |
Feed | X axis travel | mm | 420 |
Z axis travel | mm | 1250–2750 | |
X Rapid traverse speed | mm/min | 4000 | |
Z Rapid traverse speed | mm/min | 4000 | |
Tailstock | Tailstock quill travel | mm | 250 |
Tailstock quill Dia. | mm | Φ120 | |
Tailstock taper | mm | MT6 | |
Motor | Main motor power | kW | 15 |
External dimensions | Width x Height | mm | 2050×2000 |
Length | mm | 4500–6000 | |
Weight | Net weight | T | 6.3–7.4 |
Note: The bed rotation diameter and bed length can be customized according to customer requirements. | |||
Structure Advantages
（1）Extra-large through-hole design and heavy-duty capacity
Equipped with an extra-large Φ280mm spindle through-hole, meeting the requirements for large-diameter pipes such as oil casing and drill pipes. The bed is made of high-quality, high-strength cast iron, combined with a 650mm wide guideway design, ensuring the machine maintains excellent rigidity and stability under a 4-ton heavy-duty machining condition.
（2） Professional thread machining and high adaptability
Optimized for pipe thread machining, supporting precision thread turning with diameters ranging from Φ130-275mm. Employing a double three-jaw chuck configuration, it achieves stable clamping at both ends of the workpiece, effectively avoiding vibration problems during the machining of long pipes, and is particularly suitable for the repair and manufacturing of drill pipes and joints in the oil and chemical industries.
（3）Precision guideways and long-term accuracy maintenance
The guideway surface is treated with ultra-high frequency quenching, resulting in high hardness and strong wear resistance. The slide uses a special surface-fitting process, with a low coefficient of friction and smooth movement, ensuring that the machine maintains high precision even under long-term frequent use, extending the machine's service life.
（4）Flexible Configuration and Intelligent Operation
Optional mainstream CNC systems such as FANUC and Siemens are available, supporting diverse configurations including pneumatic chucks, powered turrets, and hydraulic tailstocks to meet the needs of multi-process composite machining such as threading, slotting, and face machining. The user-friendly programming interface significantly lowers the operating threshold and improves production efficiency.
Application
The QLK1328 CNC pipe threading lathe, with its extra-large spindle bore, stable double chuck structure, and excellent guideway system, demonstrates outstanding machining applicability in the following industrial fields:
Oil & Gas Industry : threading of oil/gas transmission pipes, wellhead equipment pipe fittings;
Pipeline Engineering : processing of long-distance water/gas pipeline connectors, large-diameter pipeline threads;
Heavy Machinery Manufacturing : threading of hydraulic cylinder pipes, construction machinery pipe components;
Petrochemical Equipment : fabrication of chemical reactor connecting pipes, pressure vessel pipe joints;
Shipbuilding Industry : processing of marine pipeline system components, ship deck pipe fittings.
