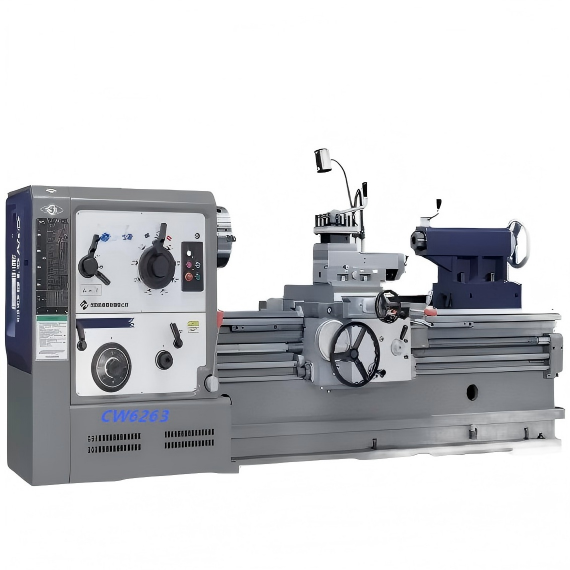

CW6263B Horizontal Lathe Machine Conventional Manual Tool
Key Features of the CW6263B Horizontal Lathe:
Bed swing diameter of 630 mm, saddle area extended to 800 mm, center distances of 1500/2000/3000 mm available, maximum load capacity of 3 tons, suitable for machining large-sized shaft and disc components; 104mm large-bore spindle, 18-speed range from 7.5 to 1000 rpm, standard φ315mm three-jaw chuck, suitable for both heavy-duty cutting and precision machining; X/Z-axis rapid traverse at 2300/4000 mm/min, supports all standard metric, inch, module, and pitch threads, with efficient tool changing via a four-station tool turret; 550mm-wide guideways paired with a heavy-duty bed, a powerful 11kW main motor, and a stable, durable machine design, making it suitable for heavy-duty machining requirements in industries such as mining, petroleum, and shipbuilding.
- Overview
- Recommended Products
Technical Specification
Item | SPECIFICATION | UNIT | CW6263B | |
Capacity | Swing over bed | mm | 630 | |
Swing over gap | mm | 一 | 800 | |
Swing over cross slide | mm | 350 | ||
Distance between centers | mm | 1500/2000/3000 | ||
Guideway width | mm | 550 | ||
Max.load capacity | T | 3 | ||
Spindle | Spindle bore | mm | 104 | |
Spindle bore taper | 一 | Metricφ120/MT5 | ||
Spindle nose type | - | C11 | ||
Spindle speed steps | - | FWD.18 steps | ||
Spindle speed range | rpm | 7.5-1000 | ||

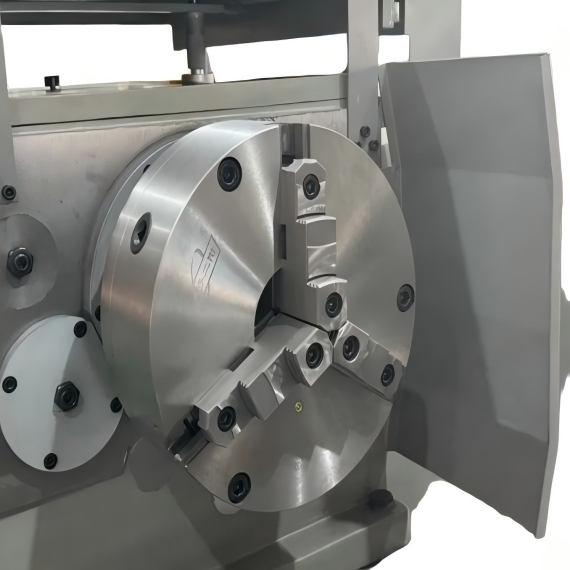

Chuck | mm | φ3153-jaw manual | ||
Turret | Turret/tool post | 一 | Manual turret 4 position | |
Tool shank size | mm | 30×30 | ||
Feed | Xaxis travel | mm | 320 | |
Zaxis travel | mm | 1350/1850/2850 | ||
Xaxis feed gradelrange | mm/r | 64/0.05-12.15 | ||
Zaxis feed gradelrange | mm/r | 64/0.1-24.3 | ||
Xaxis rapid traverse | mm/min | 2300 | ||
Zaxis rapid traverse | mm/min | 4000 | ||
Metric thread gradelrange | mm | 50/1-240 | ||
Inch thread grade/range | T.P.I | 26/14-1 | ||
Module thread gradelrange | mm | 53/0.5-120 | ||
DP thread grade/range | D.P. | 24/28-1 | ||
Tailstock | Tailstock quill diameter | mm | φ100 | |
Tailstock quill taper | - | MT5 | ||
Tailstock quill travel | mm | 250 | ||
Motor | Main spindle motor | kW | 11 | |
Rapid traverse motor | kW | 1.1 | ||
Coolant pump motor | kW | 0.125 | ||
Dimension | Width x Height | mm | 1400×1450 | |
Length | mm | 3800/4300/5300 | ||
Weight | Net weight | T | 3.7/4.1/4.8 | |

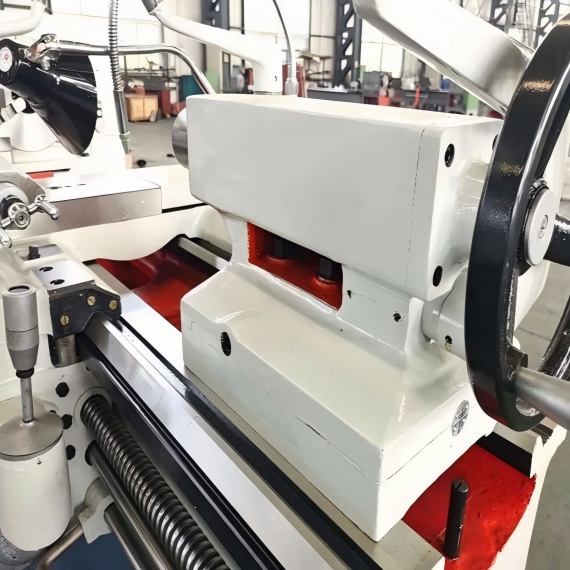

Products Showcase

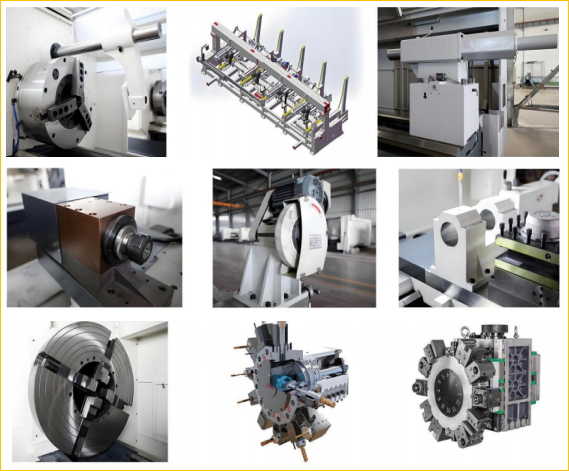

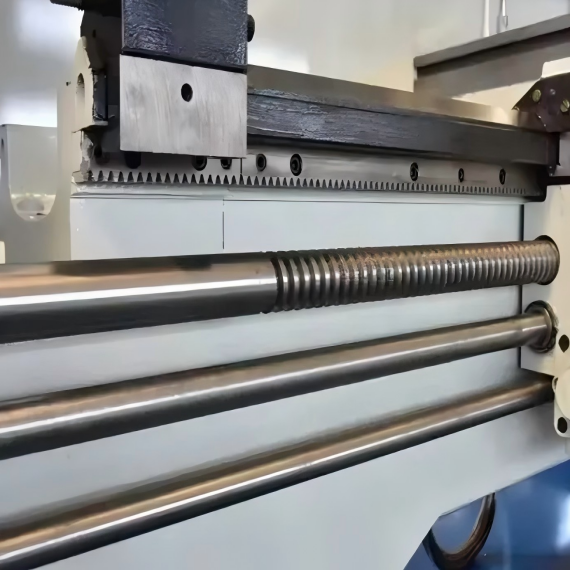

Key Components
Our machine tools support a wide range of customizable options that can be flexibly configured to meet actual production needs: Equipping the machine with an automatic loader enables automated workpiece feeding, significantly improving production efficiency and operational safety; pairing it with a hydraulic tailstock provides stable support for long-axis workpieces, enhancing machining rigidity and precision; Installing a length-setting device allows for precise control of workpiece length, meeting the needs of batch processing at fixed dimensions; users can also opt for higher-specification CNC systems, tool magazines, cooling systems, and inspection components to fully adapt to precision machining scenarios across various industries, providing users with personalized production solutions.

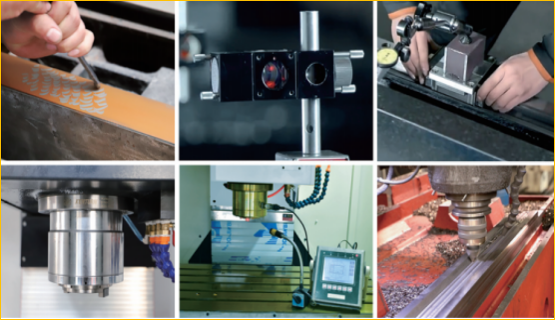

Manufacturing Process
The CNC machining process starts with creating a G-code program based on the workpiece’s 3D model, defining cutting paths, speeds, and tool changes. The program is uploaded to the CNC system, which interprets instructions to control the spindle, feed axes, and tool turret. After clamping the workpiece securely with a chuck, the machine initiates automatic machining—executing turning, milling, drilling, or threading as programmed. During operation, real-time monitoring ensures precision, with coolant and chip removal systems maintaining stability. Once completed, the workpiece is inspected for accuracy, and the program is saved for future batch production.

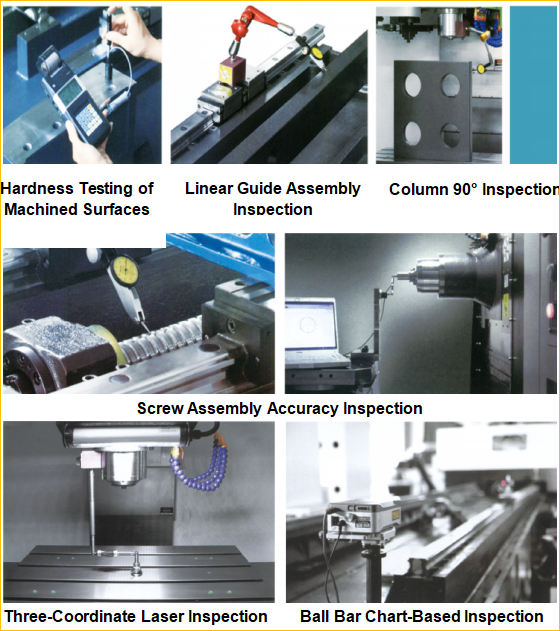

Multi-Layer Process Inspection
Machining Hardness Test
A portable hardness tester measures the hardness of machined workpiece surfaces and key structural components to verify that material mechanical properties meet design specs, ensuring subsequent machining stability and workpiece durability.
Linear Guide Assembly Inspection
Specialized tools check the parallelism, straightness, and smooth operation of linear guide assemblies, ensuring precise guidance under high-speed, heavy-load conditions and preventing deviations in motion.
Column Perpendicularity Inspection
High-precision right-angle tools or laser goniometers calibrate the perpendicularity of the machine column to the worktable and the spindle head, ensuring geometric accuracy and preventing machining surface tilt or dimensional errors.
Ball Screw Assembly Inspection
Dial indicators or micrometers detect the axial play, radial runout, and positioning accuracy of ball screws to ensure stable and precise transmission, a core step for maintaining feed accuracy.
3D Laser Inspection
A laser interferometer and high-precision equipment conduct a full scan of three- or multi-axis positioning accuracy, repeatability, straightness, and geometric errors, obtaining 3D spatial data for quantitative accuracy compensation.
Ball Bar Test
A ball bar instrument collects the machine’s circular motion data and generates accuracy analysis charts, intuitively diagnosing backlash, servo lag, and perpendicularity errors for efficient evaluation of dynamic accuracy and servo performance.
Comprehensive inspections from basic geometric accuracy to dynamic motion accuracy fully verify the machine tool’s assembly quality and operational performance, ensuring it meets the high-precision and high-efficiency demands of industrial production.
Packing and Shipping
After production is completed, our equipment is packed in customized solid wood fumigated crates, ensuring a tight, secure, and reliable package. Shock-absorbing foam and steel reinforcements are used inside to control any movement of the machine’s core components to within millimeter-level precision during transportation.
From packaging and loading to warehousing and shipment, we extend the same strict standards we apply to machining accuracy to every stage of logistics. Because the true value of a machine tool lies not only in its processing capability, but also in our commitment to “zero-loss” delivery from shipment to commissioning.
Choosing us means choosing safe, reliable transportation and full responsibility at every step of the logistics process.
FAQ
1. Can we visit your factory before order?
A: Sure.
All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.We will be very honored to help with tickets and accommodation booking.
2. What's the MOQ?
A: One set only.
3. Do you have professional engineers ?
A: Yes. we have professional engineers and designers.We can provide OEM services.
4. Do you have CE certificate?
A: Yes, we have CE certification,machine quality is guaranteed.
5. What is your payment terms?
A: 30%T/T in advance, 70%T/T before shipment, Meanwhile it can be discussed according to your situation.
6. What is your delivery time?
A: Our fastest delivery time for 1~5 sets will be within one month for standard model. Special model will depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7. How is the warranty?
A: We will supply standard ports and accessories with our machine.
Within one year after receiving our machines,in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
