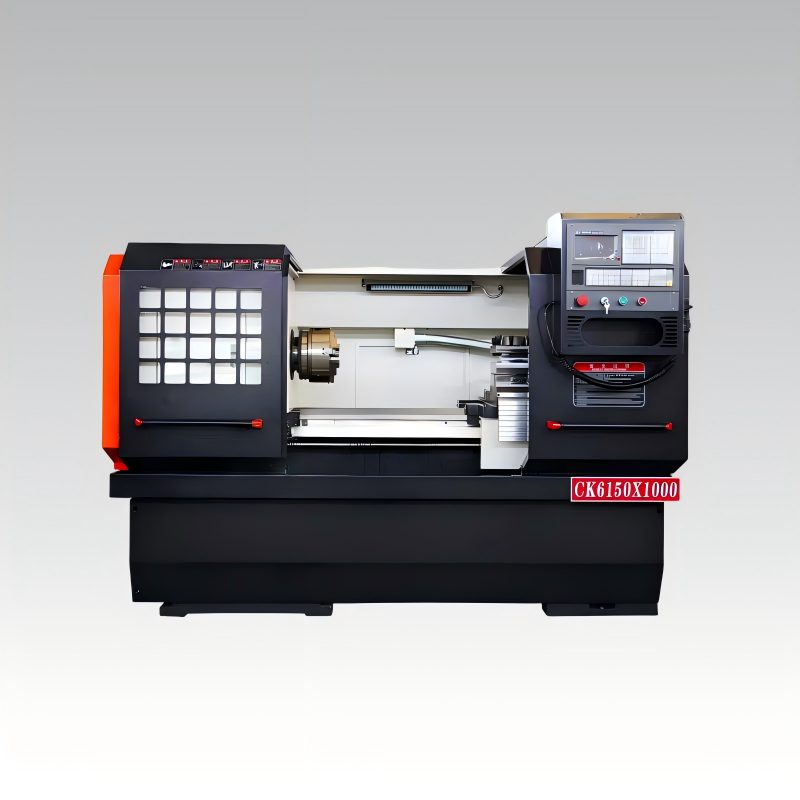

CK6150 Custom Industrial Machinery Manufacturer
Maximum swing over bed: φ500 mm; over cross slide: φ250 mm.
X/Z-axis rail spans: 210/400 mm, suitable for medium shaft and disc workpieces.
Spindle bore: φ82 mm (optional φ130 mm), max bar diameter φ80 mm (φ128 mm optional).
Spindle nose: A2-8/A2-11, chuck φ250 mm (φ380 mm optional). Max speed: 1800 rpm (800 rpm for large bore).

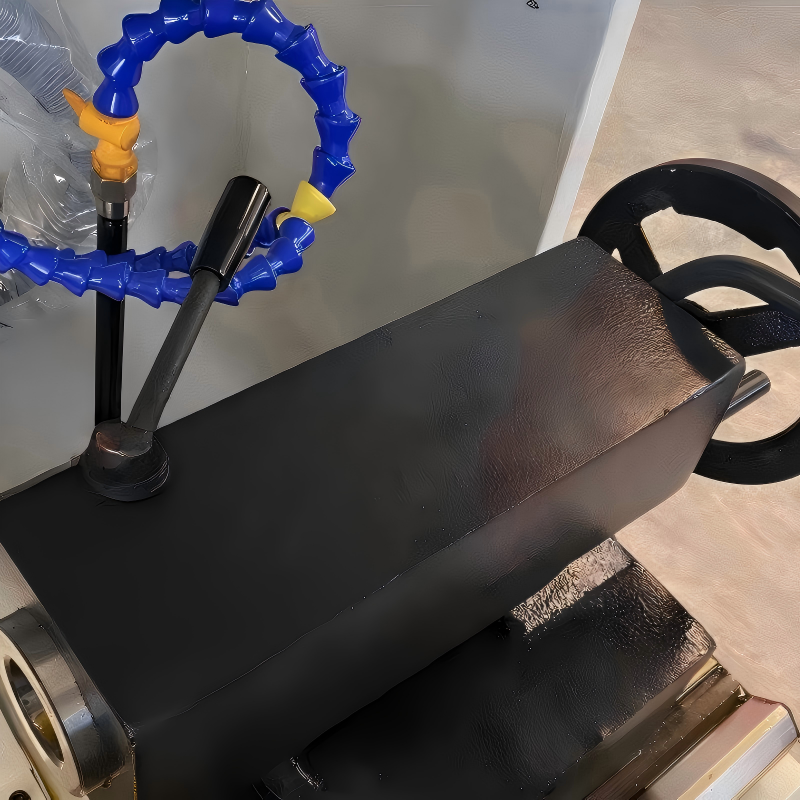

Tailstock quill: φ75 mm diameter, MT5# taper, 150 mm travel, manual crank adjustment.

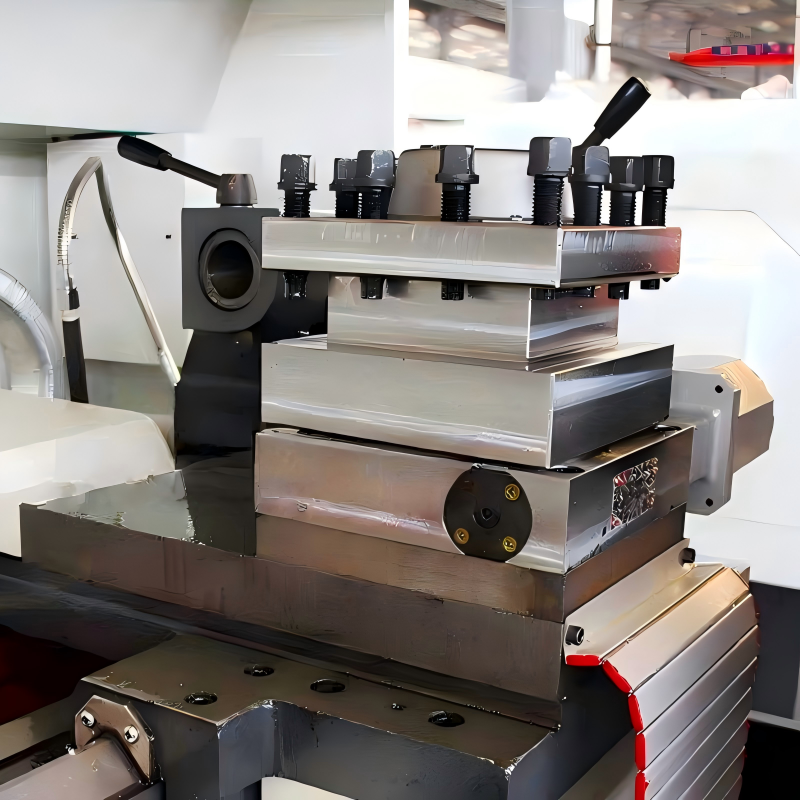

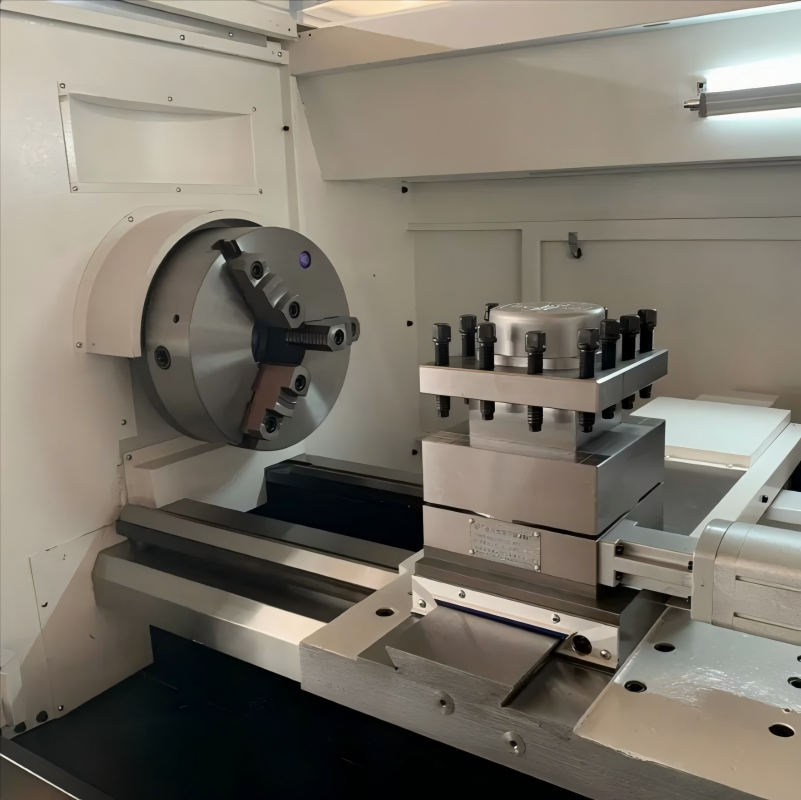

Tool post: 4 stations (6/8 optional), compatible with 25×25 mm shanks. X/Z rapid traverse: 6/8 m/min, minimum setting unit 0.001 mm for high precision control.
Main motor: 7.5 kW (optional 11 kW), total power 13 kW. Net weight: 2700-4300 kg. Dimensions (L×W×H): 2650/3250/3750/4750 × 1700 × 1820 mm (varies by model).
- Overview
- Recommended Products
Specifications：
SPECIFICATIONS | Unit | CK6150×1000/1500/2000/3000 |
Max.swing over bed | mm | φ500 |
X-axis rail span | mm | 210 |
Z-axis rail span | mm | 400 |
Max.swing over cross slide | mm | φ250 |
Distance between centers | mm | 1000/1500/2000/3000 |
Maximum turning length | mm | 850/1350/1850/2850 |
Spindle bore | mm | φ82(Optional φ130) |
Bar diameter | mm | Φ80(Φ128) |
Hollow chuck tie rod through hole | mm | Φ65(Φ115) |
Spindle nose type | A2-8/A2-11 | |
Chuck size | mm | Ordinaryφ250(Φ380) |
Spindle bore taper | No | Metric 90,1:20 |
Spindle speed steps | rpm | 1800(800) |
Tailstock quill diameter | mm | φ75 |
Tailstock quill taper | No | MT5 |
Tailstock quill travel | mm | 150 |
Tailstock configuration | Ordinary hand-crank | |
Number of electric tool holder positions | 4 Optional 6-statin α 8-staion | |
Tool shank size | mm | 25×25(4 station) |
X - axis | mm | FDC2506-P3 |
Z - axis | mm | FDC4008-P3 |
X/Z axis rapid traverse | m/min | 6/8 |
X axis travel | mm | 280 |
Minimum setting unit | mm | 0.001 |
Main motor power | KW | 7.5 Optional 11 |
Total power capacity | KW | 13 |
Net weight | Kg | 2700/3100/3500/4300 |
Dimensions(L×W×H) | mm | 2650/3250/3750/4750×1700×1820 |

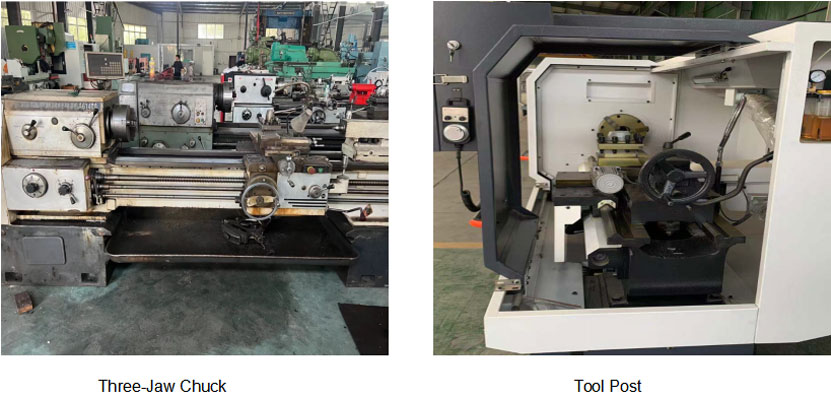

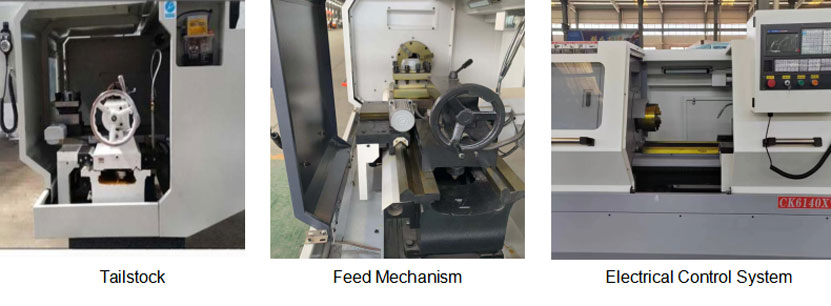

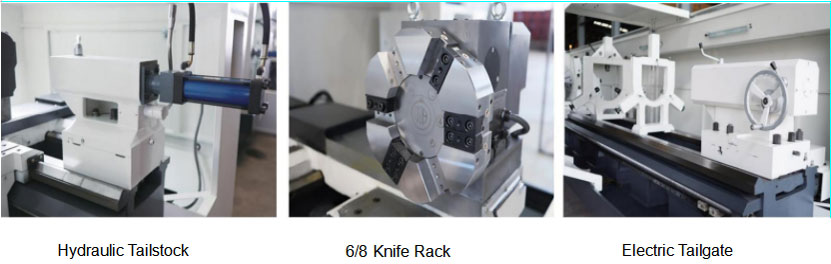

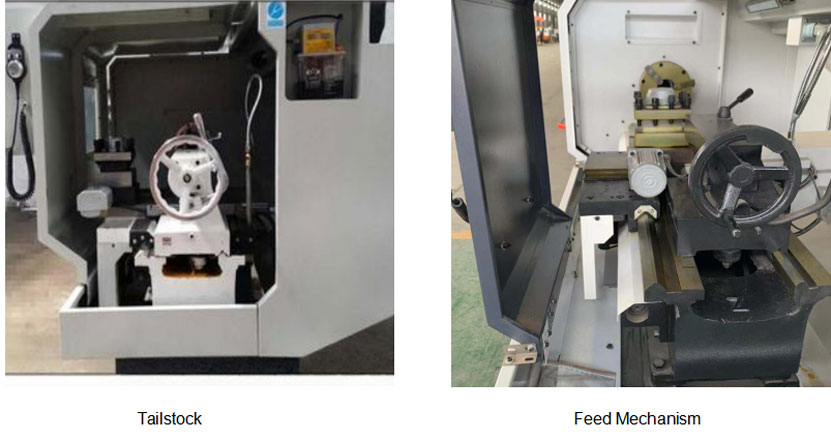

Key Components：

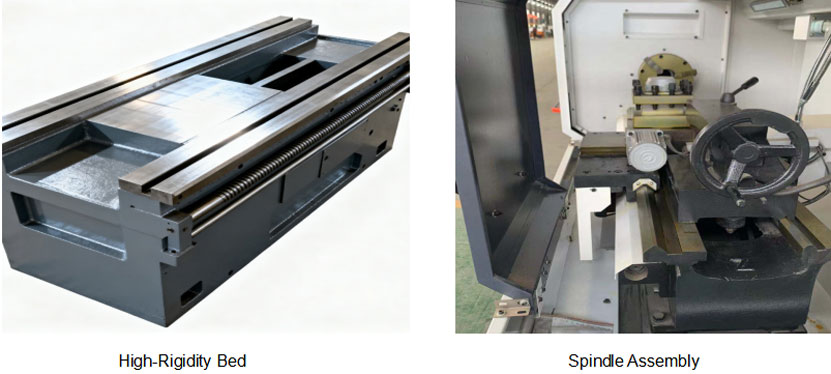

Spindle Assembly：
Production Workshop：
Our production facility is a modern smart manufacturing workshop integrating precision machining, specialized assembly and debugging, stringent quality control, and efficient logistics, with an annual production capacity exceeding 800 machine tools. The workshop is divided into five functional zones: Precision Machining, Assembly and Debugging, Welding and Structural Manufacturing, Quality Inspection, and Spare Parts Storage & Logistics. It is equipped with advanced machinery including five-axis gantry machining centers, coordinate measuring machines, and robotic welding arms. Standardized management processes are implemented, encompassing 5S workplace management and the ISO 14001 Environmental Management System. All processes adhere to high-precision standards (e.g., IT5 machining accuracy, Ra 0.4μm surface roughness for critical components) and rigorous quality inspection procedures (all parts undergo three rounds of inspection). The logistics zone adjacet to Qingdao Port ensures efficient maritime delivery to global customers. This layout not only guarantees stable product quality and sufficient production capacity but also demonstrates our firm commitment as a modern manufacturing enterprise to clen production and social responsibility.
Manufacturing Process
Multi-Layer Process Inspection
Laser Interferometer (Accuracy Calibration), Ball Bar (Circularity Calibration), Spindle/Motor Dynamic Balancing, Hardness Testing, Noise Testing, Machine Tool Geometric Accuracy Inspection, Lead Screw/Guide Rail Precision Inspection, Tool Changer/Machining Inspection.
FAQ
Q: Why choose us?
A. We are a manufacturer; we have manufactured machine tools for over 20 years.
B. Reliable Quality Assurance System;
C. Cutting-Edge Computer-Controlled CNC Machines;
D. Bespoke Solutions from Highly Experienced Specialists;
E. Customization and OEM Available for Specific Application;
F. Extensive Inventory of Spare Parts and Accessories;
G. Well-Developed Worldwide Marketing Network;
H. Efficient After-Sale Service System
Q: What is your payment term?
A: 30% TT deposit, 70% balance T/T before shipping.
Q: Can we print our logo on your products?
A: Yes, we offer OEM/ODM service, and we support the customized logo, size, package, etc.
Q: What is your main market?
A: North America, South America, Eastern Europe, Western Europe, Southeast Asia, Africa, Oceania, the Middle East, Eastern Asia,
Q: Can I get professional guidance?
A: Yes, the professional guidance can be provided.
