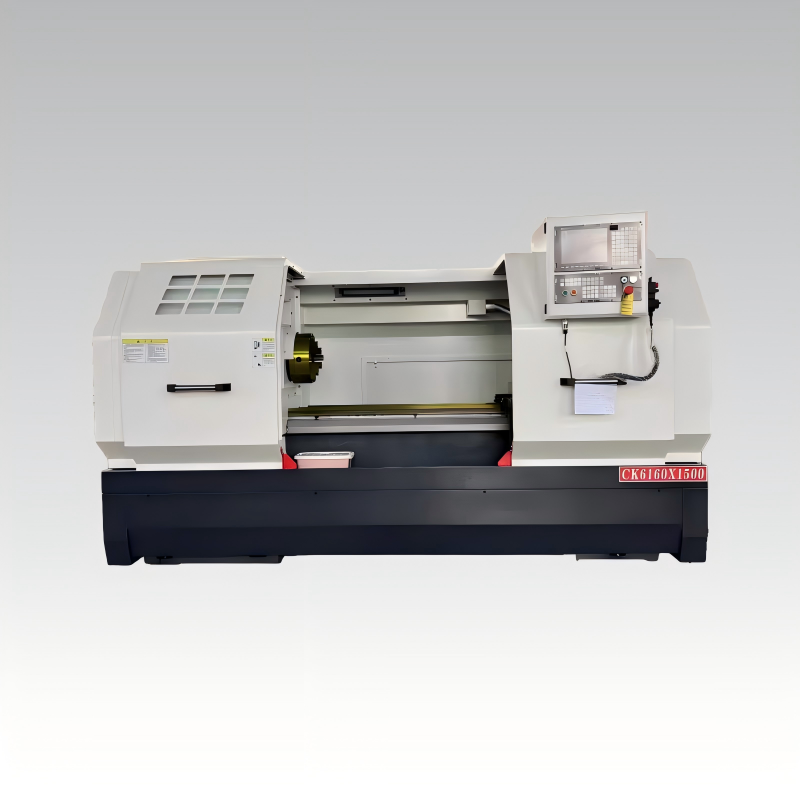

CK6160 × 1000 CNC Fanuc Siemens Control System
Boasting a max swing over bed of Φ600 mm and over cross slide of Φ395 mm, it features a standard spindle bore of Φ82 mm (optional Φ130 mm), accommodating bar diameters up to Φ128 mm. Equipped with A2-8/A2-11 spindle nose, Φ250/Φ380 mm chuck and max spindle speed of 1800 rpm, it ensures robust heavy cutting performance.
The lathe adopts 4-station motorized tool holder (optional 8-station), MT5# tailstock with 150 mm quill travel, and 45 m/min X/Z rapid traverse for high efficiency. With 7.5/11 KW main motor and stable structure (net weight 2800–4400 Kg), it suits batch and single-piece processing in machinery, mold and auto parts industries.
- Overview
- Recommended Products
Specification：
SPECIFICATIONS | Unit | CK6160×1000/1500/2000/3000 |
Max.swing over bed | mm | Φ600 |
X-axis rail span | mm | 210 |
Z-axis rail span | mm | 400 |
Max.swing over cross slide | mm | φ395 |
Distance between centers | mm | 1000/1500/2000/3000 |
Maximum turning length | mm | 850/1350/1850/2850 |
Spindle bore | mm | φ82 Optional130 |
Bar diameter | mm | Φ80(Φ128) |
Hollow chuck tie rod through hole | mm | Φ65(Φ115) |
Spindle nose type | A2-8(A2-11) | |
Chuck size | mm | Ordinaryφ250(Φ380) |
Spindle bore taper | No | Metric 140,1:20 |
Spindle speed steps | rpm | 1800(800) |
Tailstock quill diameter | mm | φ75 |
Tailstock quill taper | No | MT5# |
Tailstock quill travel | mm | 150 |
Tailstock configuration | Ordinary hand-crank | |
Number of electric tool holder positions | 4 Optional 8-station motorized tool holder | |
Tool shank size | mm | 25×25 (4 station) |
X axis | mm | FDC2510-P3 |
Z axis | mm | FDC4008-P3 |
X/Z axis rapid traverse | m/min | 45816 |
X axis travel | mm | 320 |
Minimum setting unit | mm | 0 |
Main motor power | KW | 7.5 Optional 11 |
Total power capacity | KW | 13 |
Net weight | Kg | 2800/3200/3600/4400 |
Dimensions(L×W×H) | mm | 2650/3250/3750/4750×1700×1820 |

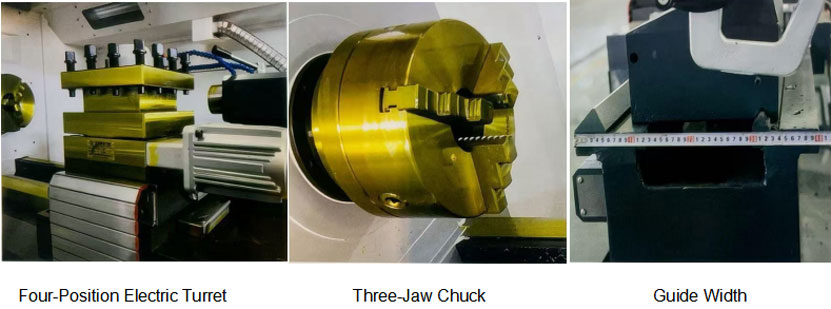

Key Components :

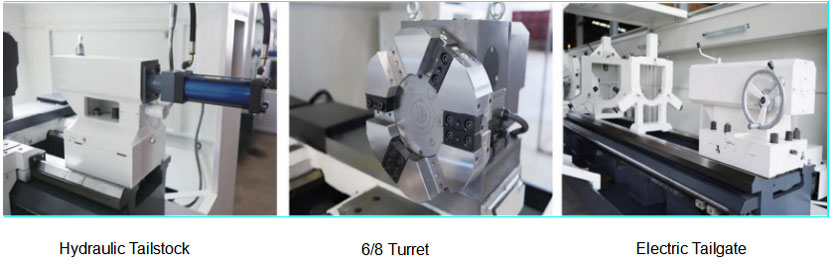

Optional Configuration:

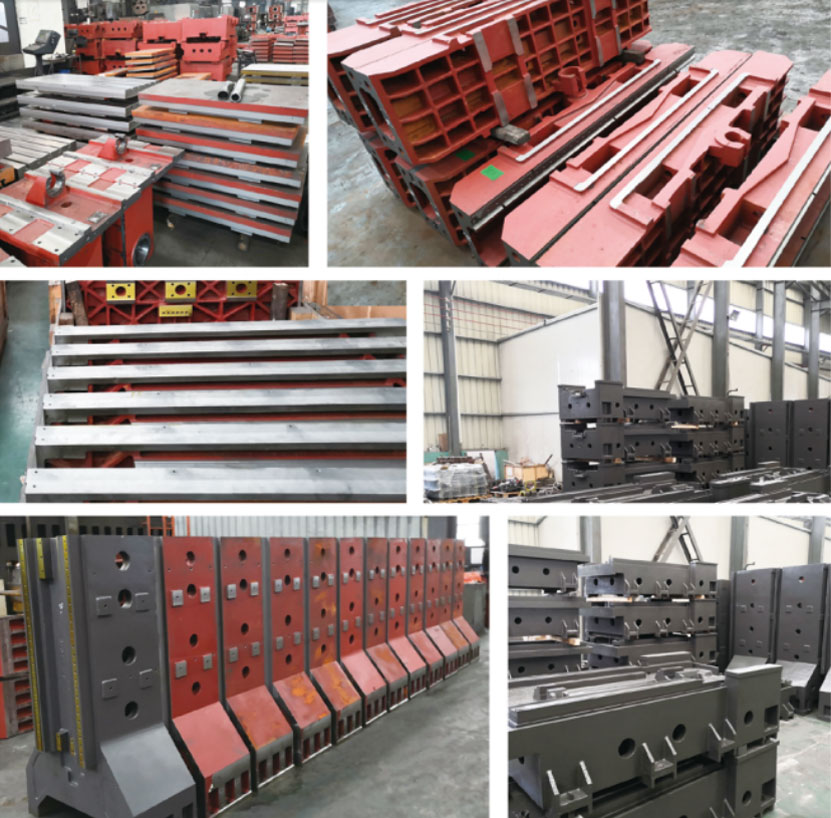

Production Workshop:
Our production facility is a modern smart manufacturing workshop integrating precision machining, specialized assembly and debugging, stringent quality control, and efficient logistics, with an annual production capacity exceeding 800 machine tools. The workshop is divided into five functional zones: Precision Machining, Assembly and Debugging, Welding and Structural Manufacturing, Quality Inspection, and Spare Parts Storage & Logistics. It is equipped with advanced machinery including five-axis gantry machining centers, coordinate measuring machines, and robotic welding arms. Standardized management processes are implemented, encompassing 5S workplace management and the ISO 14001 Environmental Management System.
All processes adhere to high-precision standards (e.g., IT5 machining accuracy, Ra 0.4μm surface roughness for critical components) and rigorous quality inspection procedures (all parts undergo three rounds of inspection). The logistics zone
adjacent to Qingdao Port ensures efficient maritime delivery to global customers. This layout not only guarantees stable product quality and sufficient production capacity but also demonstrates our firm commitment as a modern manufacturing enterprise to clean production and social responsibility.
Manufacturing Process :
The CNC machining process starts with creating a G-code program based on the workpiece’s 3D model, defining cutting paths, speeds, and tool changes. The program is uploaded to the CNC system, which interprets instructions to control the spindle, feed axes, and tool turret. After clamping the workpiece securely with a chuck, the machine initiates automatic machining—executing turning, milling, drilling, or threading as programmed. During operation, real-time monitoring ensures precision, with coolant and chip removal systems maintaining stability. Once completed, the workpiece is inspected for accuracy, and the program is saved for future batch production.
Multi-Layer Process Inspection:
Laser Interferometer (Accuracy Calibration), Ball Bar (Circularity Calibration), Spindle/Motor Dynamic Balancing, Hardness Testing, Noise Testing, Machine Tool Geometric Accuracy Inspection, Lead Screw/Guide Rail Precision Inspection, Tool Changer/Machining Inspection.
FAQ
Q: Why choose us?
A. We are a manufacturer; we have manufactured machine tools for over 20 years.
B. Reliable Quality Assurance System;
C. Cutting-Edge Computer-Controlled CNC Machines;
D. Bespoke Solutions from Highly Experienced Specialists;
E. Customization and OEM Available for Specific Application;
F. Extensive Inventory of Spare Parts and Accessories;
G. Well-Developed Worldwide Marketing Network;
H. Efficient After-Sale Service System
Q: What is your payment term?
A: 30% TT deposit, 70% balance T/T before shipping.
Q: Can we print our logo on your products?
A: Yes, we offer OEM/ODM service, and we support the customized logo, size, package, etc.
Q: What is your main market?
A: North America, South America, Eastern Europe, Western Europe, Southeast Asia, Africa, Oceania, the Middle East, Eastern Asia,
Q: Can I get professional guidance?
A: Yes, the professional guidance can be provided.
