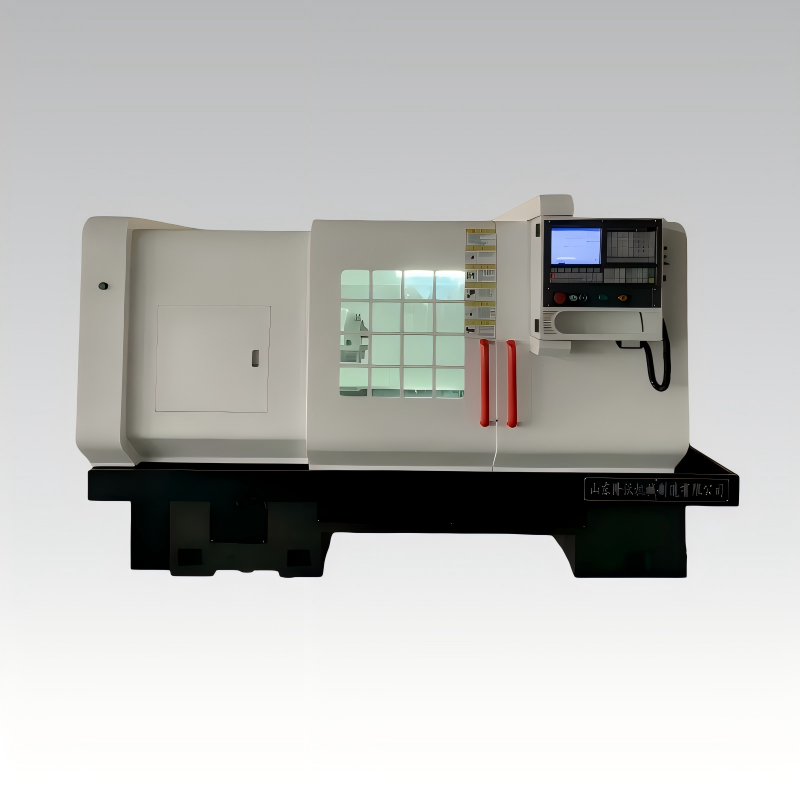

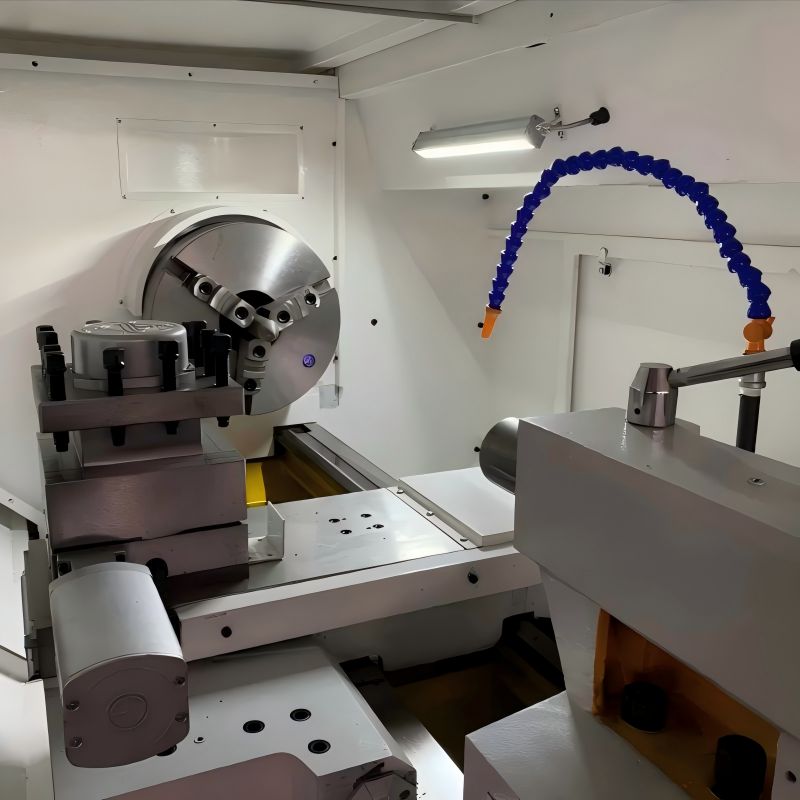

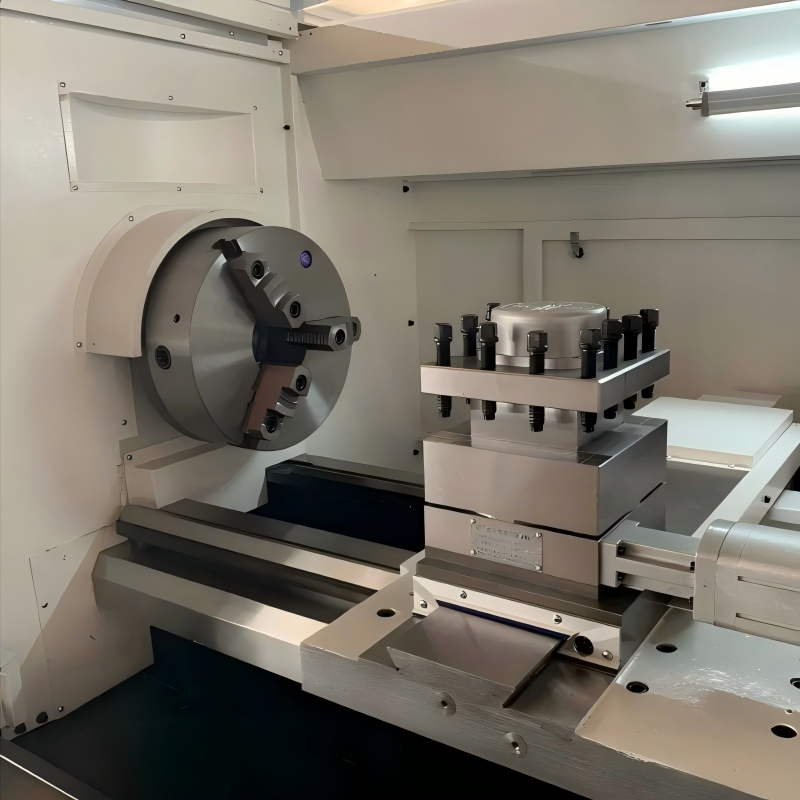

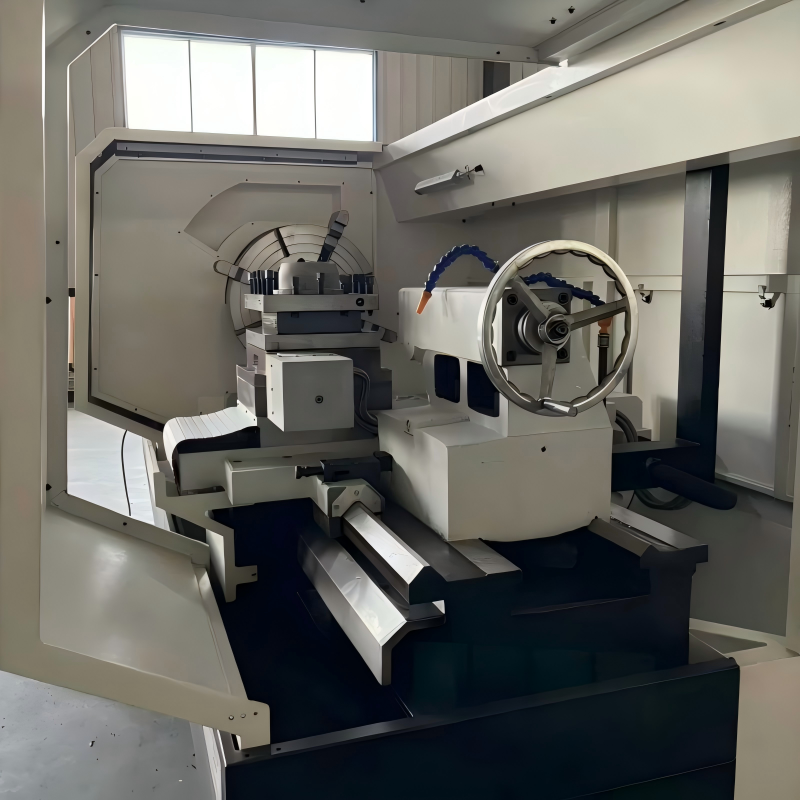

CK61100 Horizontal Flat Bed CNC Lathe Heavy Duty
Core Specifications: Bed swivel φ1100mm, saddle swivel φ650mm, center distance 1000-6000+mm;
Spindle Performance: Through-hole φ130mm, speed 30-835 rpm (four-speed stepless), main motor 22kW;

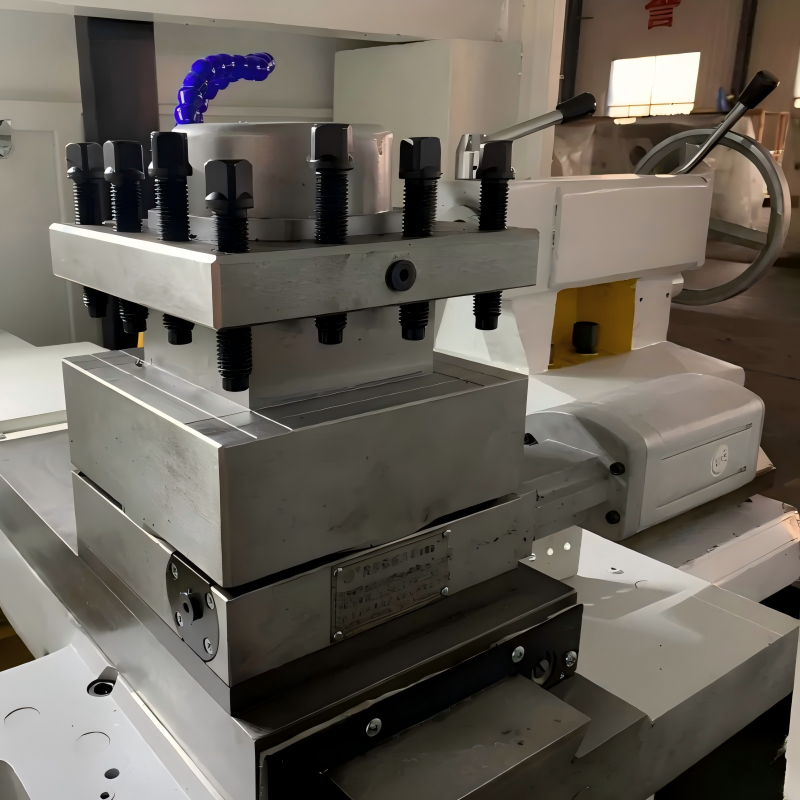

Key Configuration: Electric 4-station tool turret, tailstock sleeve φ130mm, X/Z rapid traverse 4/5m/min;
Basic Parameters: Minimum setting unit 0.001mm, net weight 5200-7300Kg.
- Overview
- Recommended Products

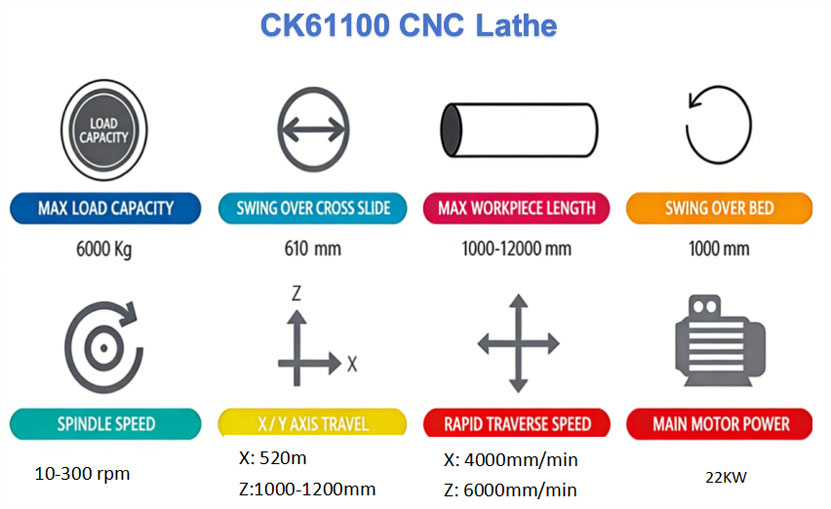

CNC Lathe Machine – Specifications：
SPECIFICATIONS | Unit | CK61100 |
Max.swing over bed | mm | Φ1100 |
X-axis rail span | mm | 330 |
Z-axis rail span | mm | 600（Optional700) |
Max.swing over cross slide | mm | φ650 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000+ |
Maximum turning length | mm | 1000/1500/2000/3000/4000/5000/6000+ |
Spindle bore | mm | φ130 |
Bar diameter | mm | φ128 |
Hollow chuck tie rod through hole | mm | Φ115 |
Spindle nose type | mm | A2-11 |
Chuck size | mm | Manual 4 jaw φ630 |
Spindle bore taper | Metric120,1:20 | |
Spindle speed steps | mm | 30-84.53-150.125-350.300-835 r/min |
Tailstock quill diameter | No | φ130 |
Tailstock quill taper | rpm | MT6# |
Tailstock quill travel | mm | 265 |
Tailstock configuration | No | Manual |
Nunber of electric tool holder positians | mm | 4 |
Tool shank size | mm | 32×32 (4-positins) |
X axis | mm | FDC4005-P3 |
Z axis | mm | FDC6310-P3 |
X/Z axis rapid traverse | m/min | 4/5 |
X axis travel | mm | 500 |
Minimum setting unit | mm | 0.001 |
Main motor power | KW | 22 |
Total power capacity | KW | 25 |
Net weight | Kg | 5200/5800/6300/7300 |
Dimensions(L×W×H) | mm | 3500/4000/4500/5500/6000/7000/8000×2100×2000 |

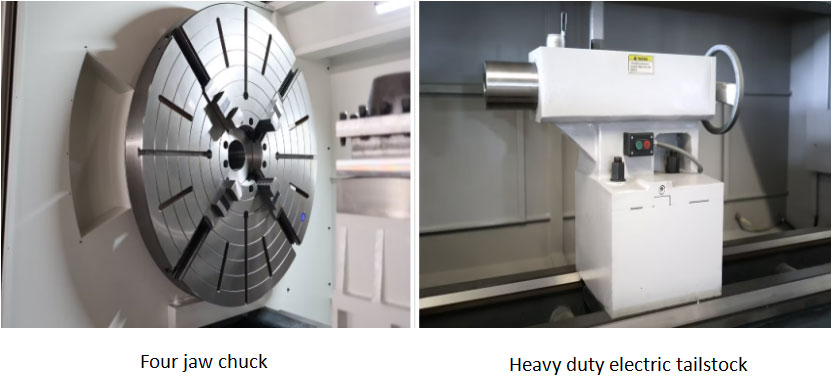

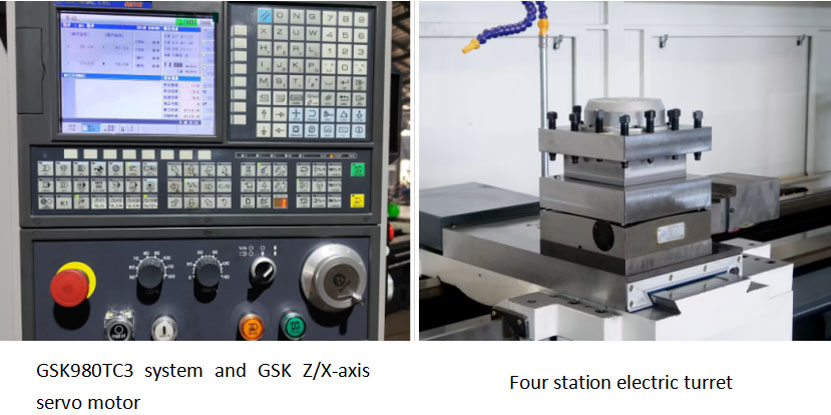

Key Components

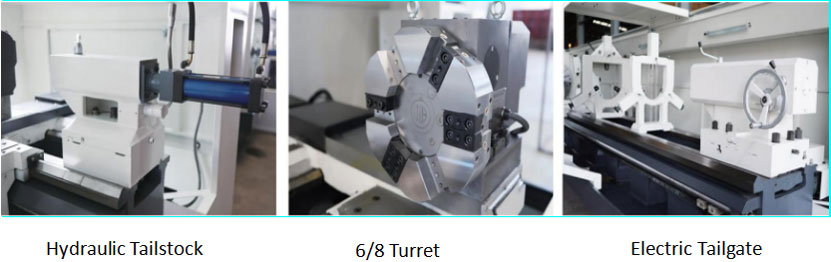

Optional Configuration
Production Workshop
Our production facility is a modern smart manufacturing workshop integrating precision machining, specialized assembly and debugging, stringent quality control, and efficient logistics, with an annual production capacity exceeding 800 machine tools. The workshop is divided into five functional zones: Precision Machining, Assembly and Debugging, Welding and Structural Manufacturing, Quality Inspection, and Spare Parts Storage & Logistics. It is equipped with advanced machinery including five-axis gantry machining centers, coordinate measuring machines, and robotic welding arms. Standardized management processes are implemented, encompassing 5S workplace management and the ISO 14001 Environmental Management System.
All processes adhere to high-precision standards (e.g., IT5 machining accuracy, Ra 0.4μm surface roughness for critical components) and rigorous quality inspection procedures (all parts undergo three rounds of inspection). The logistics zone
adjacent to Qingdao Port ensures efficient maritime delivery to global customers. This layout not only guarantees stable product quality and sufficient production capacity but also demonstrates our firm commitment as a modern manufacturing enterprise to clean production and social responsibility.

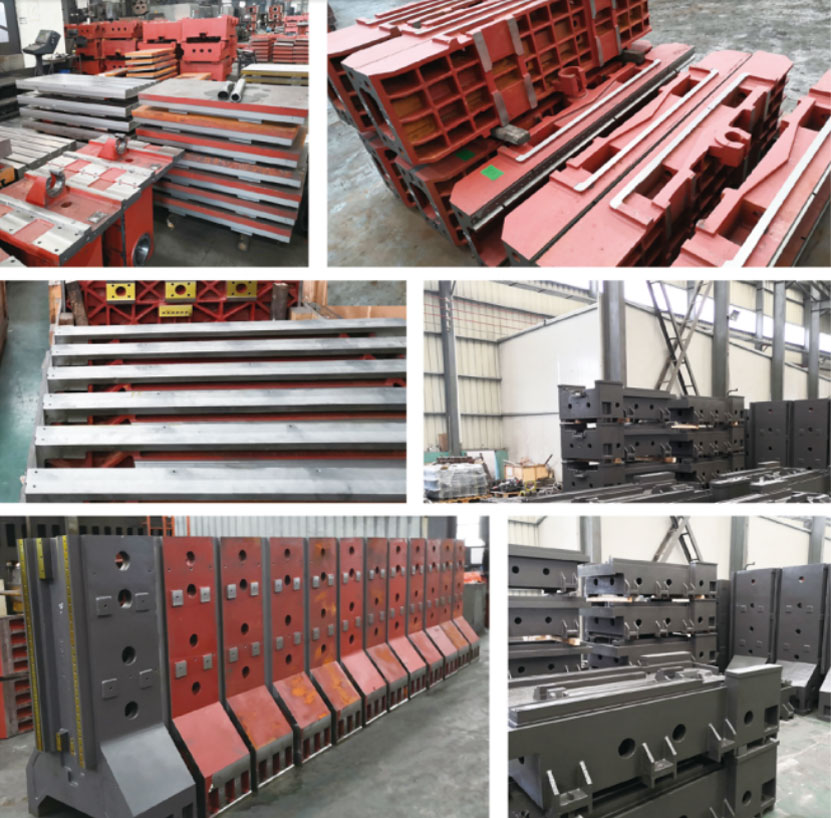

Manufacturing Process
Multi-Layer Process Inspection
Laser Interferometer (Accuracy Calibration), Ball Bar (Circularity Calibration), Spindle/Motor Dynamic Balancing, Hardness Testing, Noise Testing, Machine Tool Geometric Accuracy Inspection, Lead Screw/Guide Rail Precision Inspection, Tool Changer/Machining Inspection.
Packing and Shipping

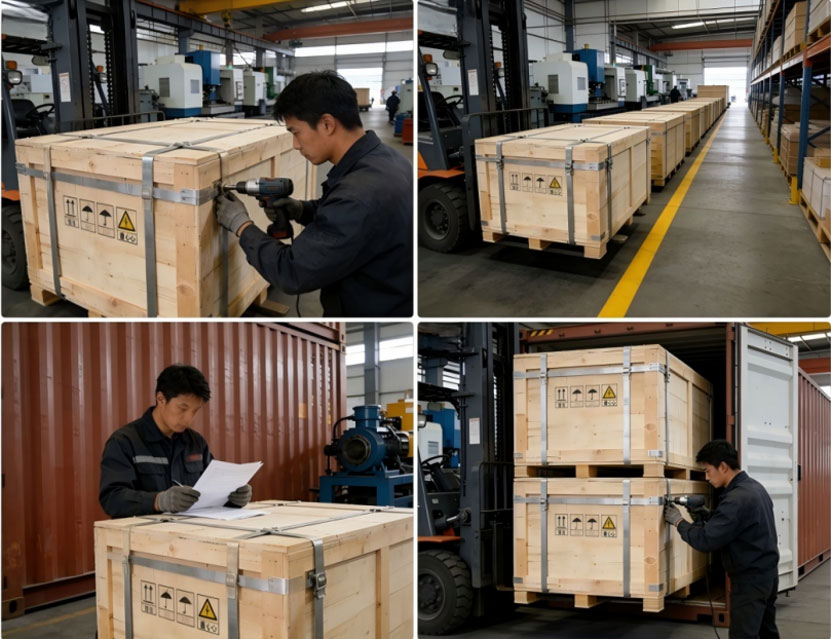

After production is completed, our equipment is packed in customized solid wood fumigated crates, ensuring a tight, secure, and reliable package. Shock-absorbing foam and steel reinforcements are used inside to control any movement of the machine’s core components to within millimeter-level precision during transportation. From packaging and loading to warehousing and shipment, we extend the same strict standards we apply to machining accuracy to every stage of logistics. Because the true value of a machine tool lies not only in its processing capability, but also in our commitment to “zero-loss” delivery from shipment to commissioning. Choosing us means choosing safe, reliable transportation and full responsibility at every step of the logistics process.
