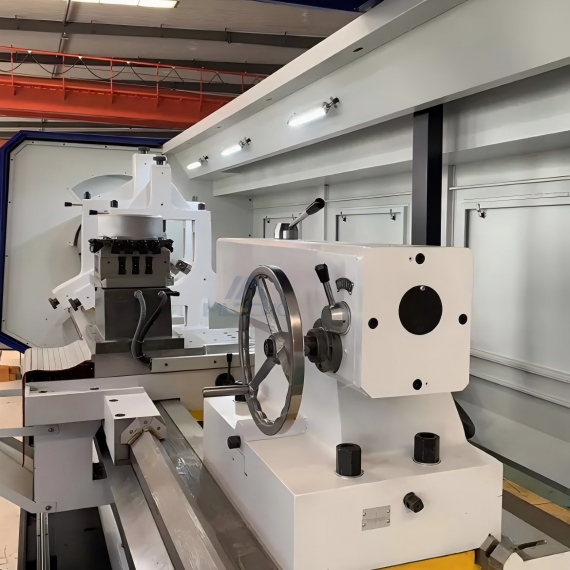

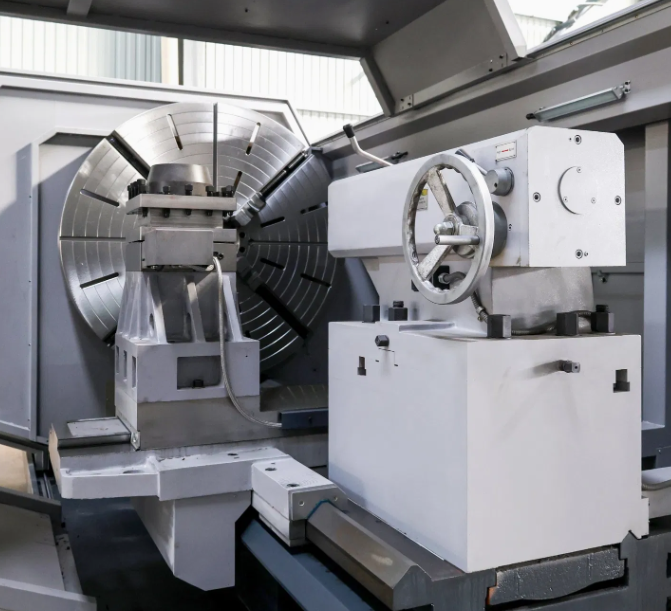

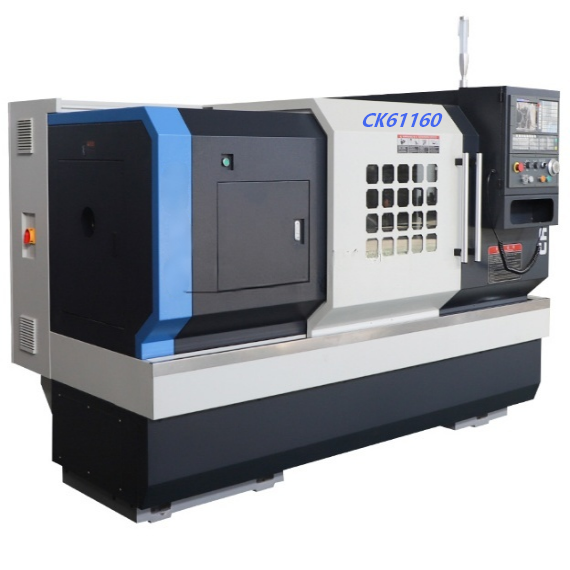

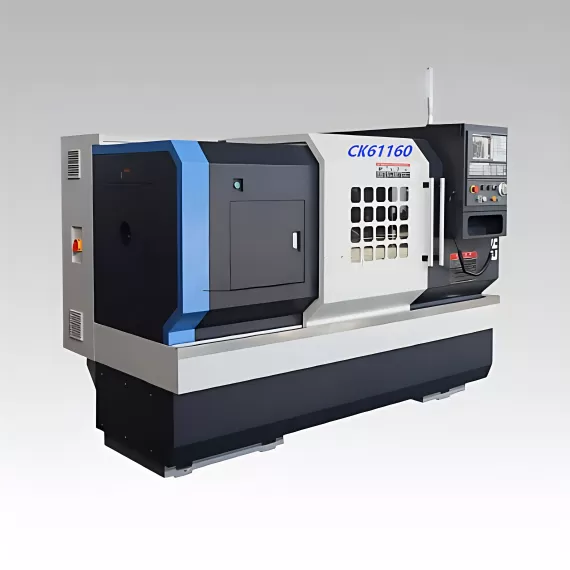

CK61160 Bed CNC Horizontal Lathe Machine Hydraulic Tailstock
CLK61160 is a heavy-duty horizontal lathe with a large spindle bore, suitable for precision turning of large-scale shaft and disk parts. The machine features a 755mm wide bed guideway for excellent load capacity and rigidity. It has a maximum swing over bed of Φ1600mm, a maximum swing over cross slide of Φ1200mm, and a distance between centers ranging from 1500mm to 10000mm, which can meet the processing requirements of long and large workpieces.
- Overview
- Recommended Products
Specifications
| Project | Unit | CLK61160 |
| Swing over bed | mm | Φ1600 |
| Swing over cross slide | mm | Φ1200 |
| Distance between centers | mm | 1500-10000 |
| Width of bed way | mm | 755 |
| Spindle bore | T | 6 |
| Spindle bore | mm | Φ 130 |
| Spindle bore taper | -- | Metric 140/MT6 |
| Spindle nose type | -- | A12-5 |
| Spindle speed | r/min | 4-300 |
| Spindle speed steps | -- | Manual 4steps |
| Chuck | mm | Φ 12504-jaw manual |
| Turret /tool post | -- | NC turret 4position |
| Tool shank size | mm | 40 |
| X axis travel | mm | 720 |
| Z axis travel | mm | 1250-7750 |
| X Rapid traverse speed | mm/min | 4000 |
| Z Rapid traverse speed | mm/min | 4000 |
| Tailstock quill travel | mm | 300 |
| Tailstock quillDia. | mm | Φ 160/φ205 |
| Tailstock taper | mm | MT6 |
| Main motor power | kw | 37 |
| Width x Height | mm | 2650×2550 |
| Length | mm | 5000-12000 |
| Net weight | T | 13-22 |
Key Components

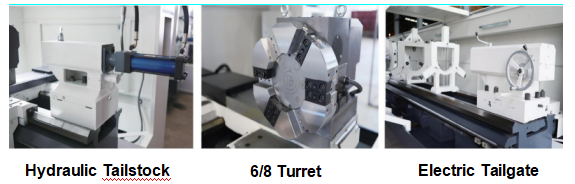

Optional Configuration
Manufacturing Process
The CNC machining process starts with creating a G-code program based on the workpiece’s 3D model, defining cutting paths, speeds, and tool changes. The program is uploaded to the CNC system, which interprets instructions to control the spindle, feed axes, and tool turret. After clamping the workpiece securely with a chuck, the machine initiates automatic machining—executing turning, milling, drilling, or threading as programmed. During operation, real-time monitoring ensures precision, with coolant and chip removal systems maintaining stability. Once completed, the workpiece is inspected for accuracy, and the program is saved for future batch production.

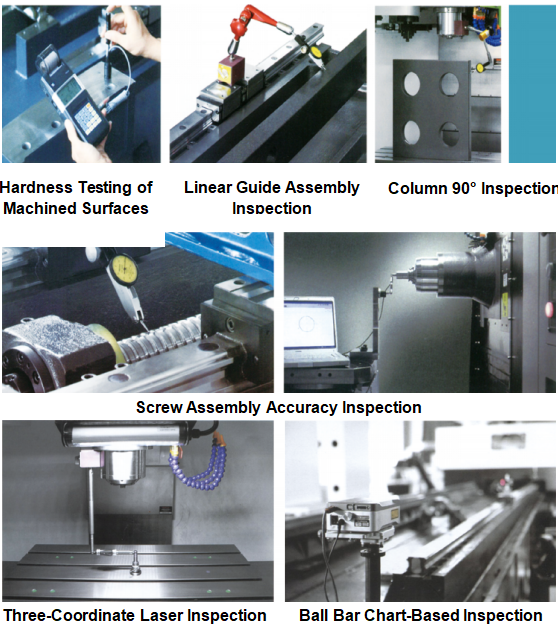

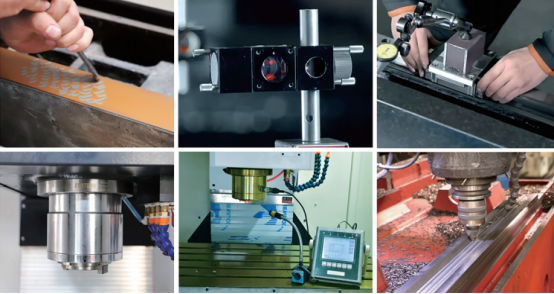

Multi-Layer Process Inspection
Laser Interferometer (Accuracy Calibration), Ball Bar (Circularity Calibration), Spindle/Motor Dynamic Balancing, Hardness Testing, Noise Testing, Machine Tool Geometric Accuracy Inspection, Lead Screw/Guide Rail Precision Inspection, Tool Changer/Machining Inspection.

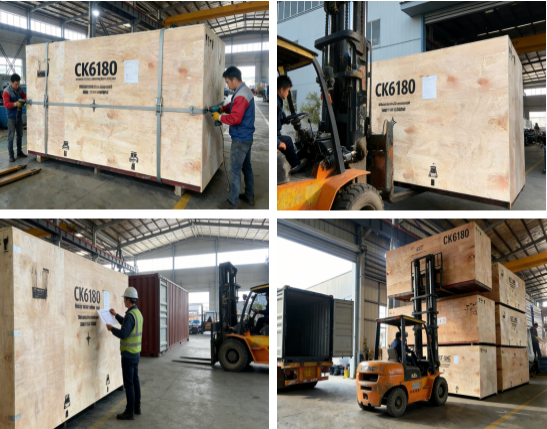

Packing and Shipping
After production is completed, our equipment is packed in customized solid wood fumigated crates, ensuring a tight, secure, and reliable package. Shock-absorbing foam and steel reinforcements are used inside to control any movement of the machine’s core components to within millimeter-level precision during transportation.
From packaging and loading to warehousing and shipment, we extend the same strict standards we apply to machining accuracy to every stage of logistics. Because the true value of a machine tool lies not only in its processing capability, but also in our commitment to “zero-loss” delivery from shipment to commissioning.
Choosing us means choosing safe, reliable transportation and full responsibility at every step of the logistics process.
FAQ
1. Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.We will be very honored to help with tickets and accommodation booking.
2. What's the MOQ?
A: One set only.
3. Do you have professional engineers ?
A: Yes. we have professional engineers and designers.We can provide OEM services.
4. Do you have CE certificate?
A: Yes, we have CE certification,machine quality is guaranteed.
5. What is your payment terms?
A: 30%T/T in advance, 70%T/T before shipment, Meanwhile it can be discussed according to your situation.
6. What is your delivery time?
A: Our fastest delivery time for 1~5 sets will be within one month for standard model. Special model will depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7. How is the warranty?
A: We will supply standard ports and accessories with our machine.
Within one year after receiving our machines,in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
