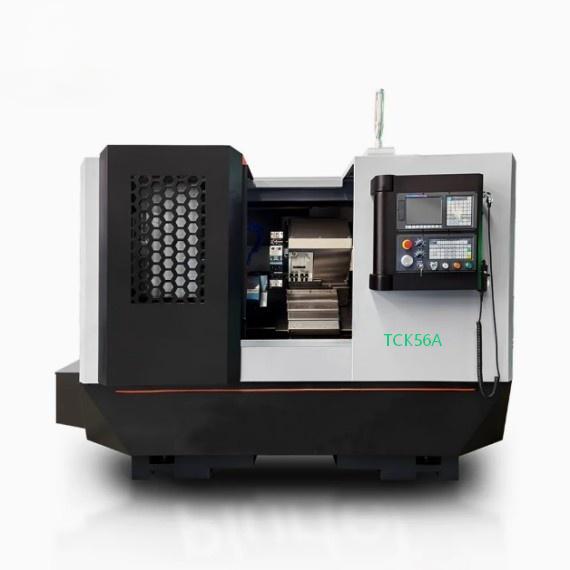

TCK56A High Precision Slant Bed CNC Turning Lathe Machine
Structural Features
Versatile workpiece compatibility:
Max. swing over bed: φ600mm; max. work-piece length: 500/1000/1500mm; max. bar capacity: 50mm. It can flexibly handle shaft and disc parts of different sizes.
High-performance processing system:
Spindle speed: 20-3000r/min (stepless speed regulation); equipped with 8/10/12-station horizontal/vertical turret, compatible with tool shank sizes (e.g., 25×25). X/Z axes adopt 45mm roller linear guides, with rapid traversal speeds of 12/15m/min for high positioning accuracy.
Compact & durable design:
Hydraulic tailstock with hard-rail guide ensures strong support stability; the machine has a compact overall size (net weight starting from 4000kg), balancing rigidity and workshop layout adaptability.
Key Advantages
Flexible processing:
Multi-station turret + multi-specification strokes enable quick switching between various part types for production;
Stable precision:
Roller linear guides + stepless speed spindle ensure repeat positioning accuracy ≤0.005mm, with strong consistency in batch processing;
Cost-effective:
Combines high configuration with compact design, offering high cost-performance for small-to-medium batch precision processing scenarios.
- Overview
- Recommended Products
SPECIFICATION
SPECIFICATIONS | Unit | TCK56A |
Max.swing over bed | mm | 600 |
Max.swing over slide | mm | 350 |
Max.work piece length | mm | 500/1000/1500 |
Max.bar capacity | mm | 50 |
Max.processing diameter(plate) | mm | 400 |
Spindle nose type | A2-6/8 | |
Spindle bore | mm | Φ65/φ86 |
Spindle speed range | min | 20-3000 |
Spindle shift mode | Stepless | |
Spindle motor power | kw | 11 |
Chuck type | Hydaulic chuck | |
Chuck size | lnch | 8/10 |
X/Z axis linear guide | mm | 45/45 Roller line rail |
Xaxis rapid traverse | m/min | 12 |
Z axis rapid traverse | m/min | 15 |
X axis servo motor torque | N.m | 10 |
Z axis servo motor torque | N.m | 15 |
Xaxis travel | mm | 210 |
Z axis travel | mm | 560/1050/1550 |
Guide way type | Linear guides | |
Turret type | Horizontal 8/12 station | |
Tool shank size | mm | 25X25/φ32/Φ40 |
Tail stock type | Hydaulic Optional servo | |
Tailstock guide form | Hard rail |

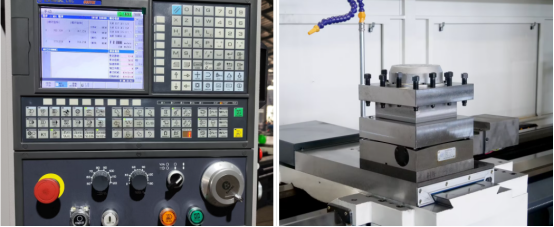

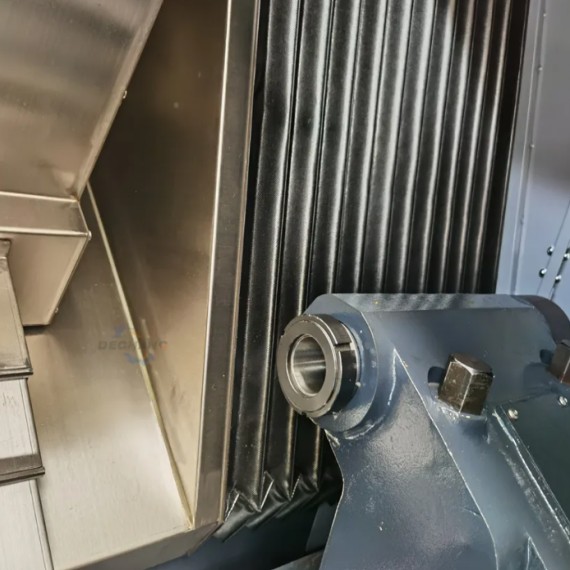

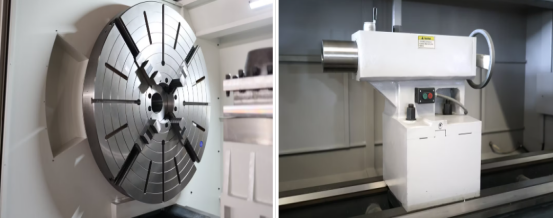

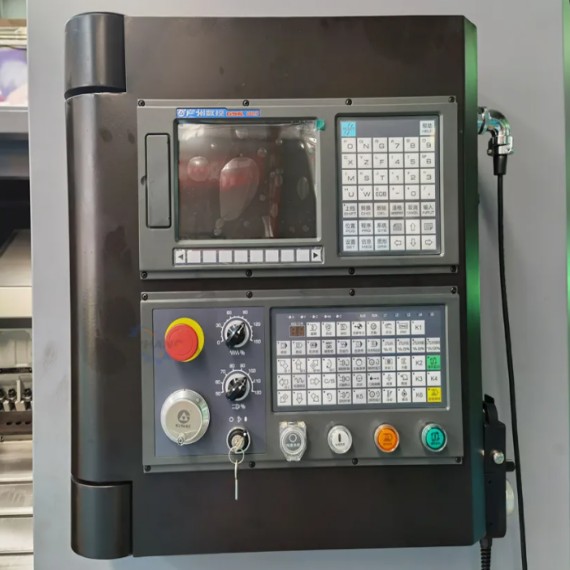

Key Components

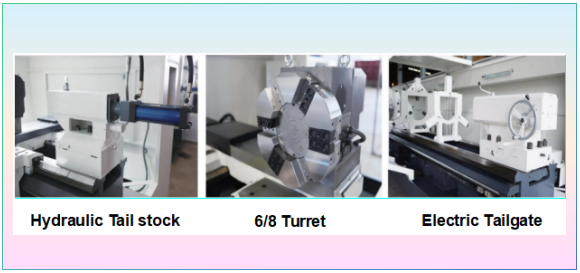

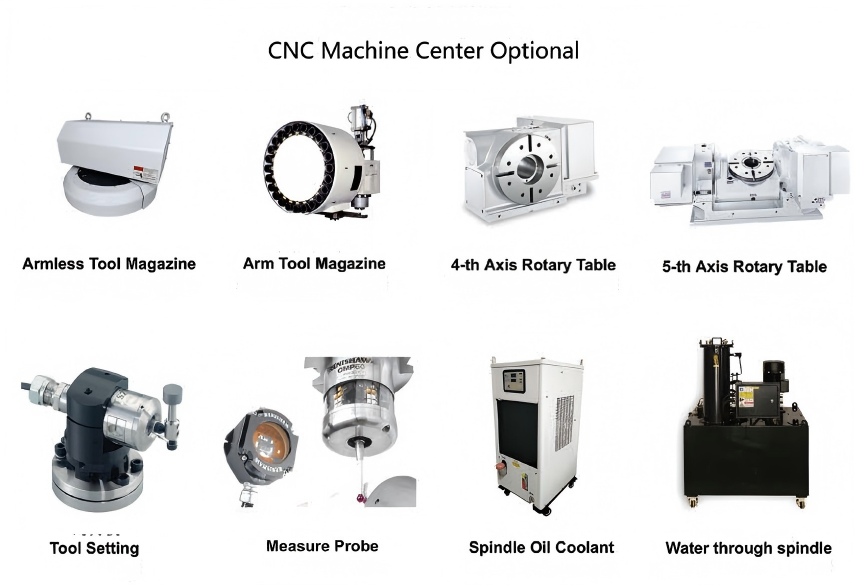

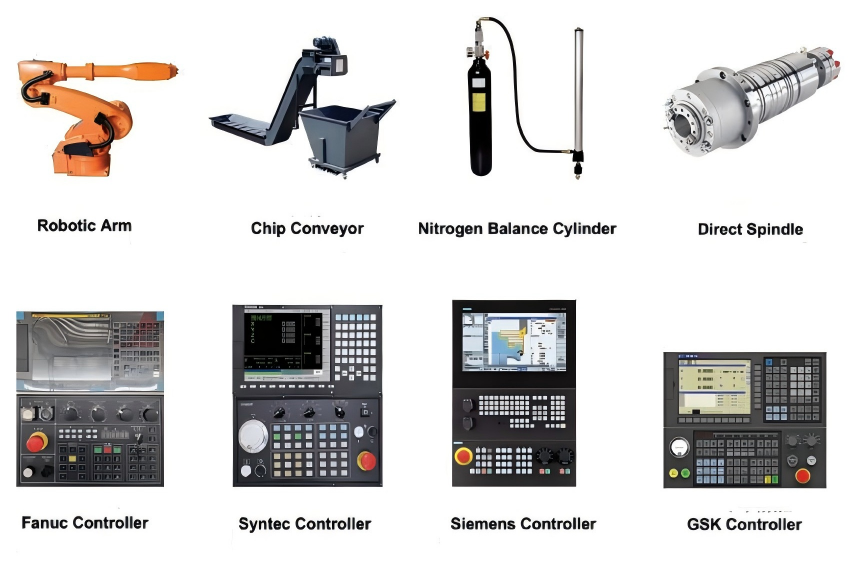

Optional Configuration

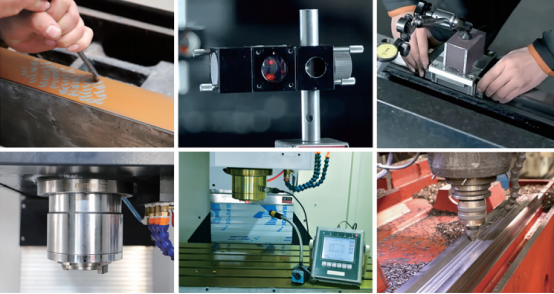

Manufacturing Process
The CNC machining process starts with creating a G-code program based on the workpiece’s 3D model, defining cutting paths, speeds, and tool changes. The program is uploaded to the CNC system, which interprets instructions to control the spindle, feed axes, and tool turret. After clamping the workpiece securely with a chuck, the machine initiates automatic machining—executing turning, milling, drilling, or threading as programmed. During operation, real-time monitoring ensures precision, with coolant and chip removal systems maintaining stability. Once completed, the workpiece is inspected for accuracy, and the program is saved for future batch production.
