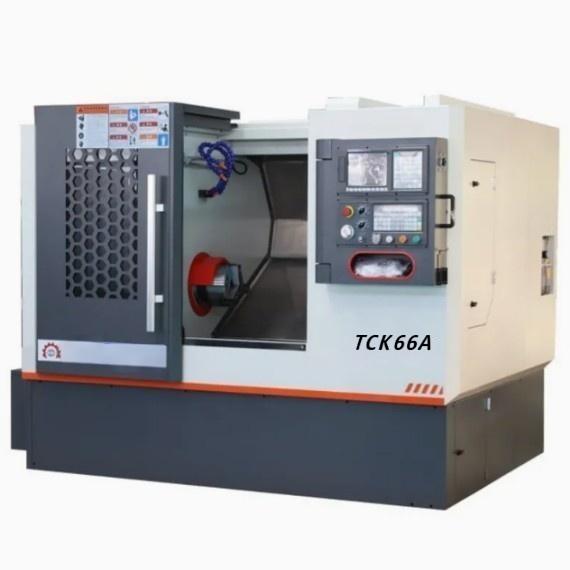

TCK66A Slant Bed CNC Turning Lathe Machine
Key Features
Large-bore spindle: Spindle bore up to Φ86/Φ104, suitable for machining large-diameter bar or tube materials.
Wide-range stepless speed control: Spindle speed range of 3500/1500 rpm enables flexible adjustment for different materials and cutting conditions.
High-power spindle motor: 15 kW motor provides strong cutting capability for heavy-duty operations.
High rapid traverse speed: X-axis rapid traverse at 18 m/min, Z-axis at 20 m/min, significantly improving productivity.
Versatile 12-station turret:Supports external turning, boring, drilling, and various tool configurations.
High-precision linear guideways: X/Z axes use linear rails for smooth, accurate, and stable feed motion.
Optional hydraulic or servo tailstock: Ensures support and stability for machining long-shaft components.
Application Fields
The TCK66A is widely used in:
1. Automotive parts machining (shafts, sleeves, discs)
2. General machinery manufacturing (standard and non-standard parts)
3. Hydraulic and pneumatic component processing (connectors, valve bodies)
4. Hardware and electromechanical components
5. Aerospace and power equipment components
- Overview
- Recommended Products
SPECIFICATIONS | Unit | TCK66A |
Max.swing over bed | mm | 660 |
Max.swing over slide | mm | 500 |
Max.processing length | mm | 1000/1500/2000/3000/4000+ |
Max.bar capacity | mm | 75/90 |
Max.processing diameter(plate) | mm | 500 |
Spindle nose type | A2-11 | |
Spindle bore | mm | Φ 86/Φ104 |
Spindle speed range | min | 3500/1500 |
Spindle shift mode | Stepless | |
Spindle motor power | kw | 15 |
Chuck type | Hydaulic | |
Chuck size | nch | 12 |
X axis rapid traverse | m/min | 12 |
Z axis rapid traverse | m/min | 15 |
X axis servo motor torque | N.m | 15 |
Z axis servo motor torque | N.m | 15 |
X axis travel | mm | 330 |
Z axis travel | mm | 1650/2150/3150/4150+ |
X/Z axis guide way type | mm | 55/55 Linear rail |
Tool post type | Horizontal 12 stations | |
Tool shank size | mm | Cylindrical cutters25×25/boring tools32/42 |
Tail stock type | Hydaulic Optional servo | |
Tailstock guide form | Hard rail | |
Tail stock quill diameter | mm | 100 |

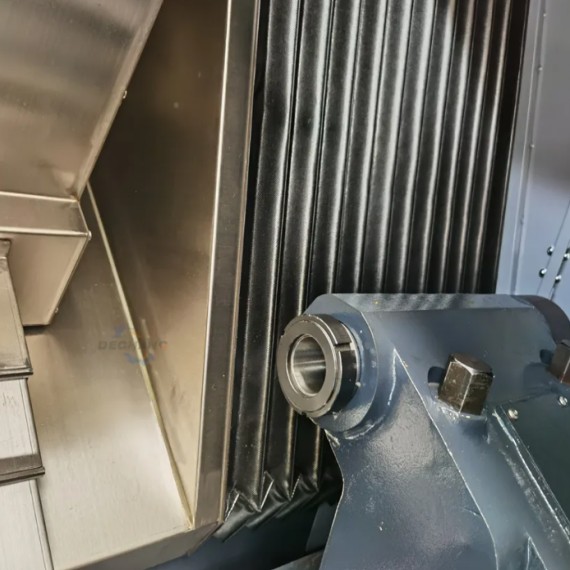

Key Components
Processing
The CNC machining process starts with creating a G-code program based on the workpiece’s 3D model, defining cutting paths, speeds, and tool changes. The program is uploaded to the CNC system, which interprets instructions to control the spindle, feed axes, and tool turret. After clamping the workpiece securely with a chuck, the machine initiates automatic machining—executing turning, milling, drilling, or threading as programmed. During operation, real-time monitoring ensures precision, with coolant and chip removal systems maintaining stability. Once completed, the workpiece is inspected for accuracy, and the program is saved for future batch production.
Multi-Layer Process Inspection
Laser Interferometer (Accuracy Calibration), Ball Bar (Circularity Calibration), Spindle/Motor Dynamic Balancing, Hardness Testing, Noise Testing, Machine Tool Geometric Accuracy Inspection, Lead Screw/Guide Rail Precision Inspection, Tool Changer/Machining Inspection.
Packing and Shipping

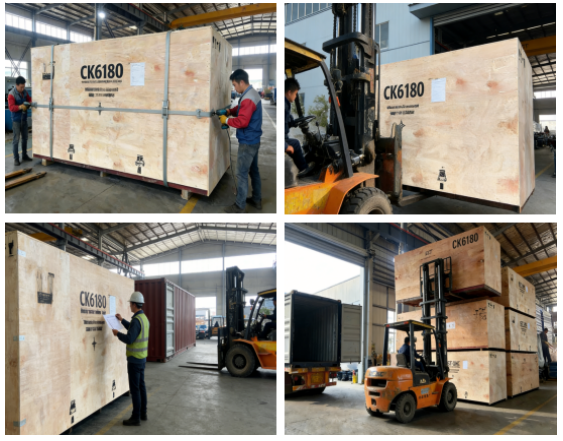

After production is completed, our equipment is packed in customized solid wood fumigated crates, ensuring a tight, secure, and reliable package. Shock-absorbing foam and steel reinforcements are used inside to control any movement of the machine’s core components to within millimeter-level precision during transportation.
From packaging and loading to warehousing and shipment, we extend the same strict standards we apply to machining accuracy to every stage of logistics. Because the true value of a machine tool lies not only in its processing capability, but also in our commitment to “zero-loss” delivery from shipment to commissioning.
Choosing us means choosing safe, reliable transportation and full responsibility at every step of the logistics process.
